Introduction
The Interchange IPTV content requires some language to be included calling out that this is the Interchange partner. For example:
“Interchange brought to you by”
“Interchange bench thanks to”
“Interchange presented by”
Submission & Deadlines
All content is submitted via our content management portal MKTG Drop.
Instructions for uploading and re-using content via MKTG Drop can be found here..
All assets will need to be provided to MKTG 5 business days before the first event.
Contact MKTG immediately if you are unable to meet this deadline.
Live data IPTV suite
Live data sites
Interchange IPTV is very similar to a normal IPTV suite, however some areas will need to be plain for the data to go over the top.

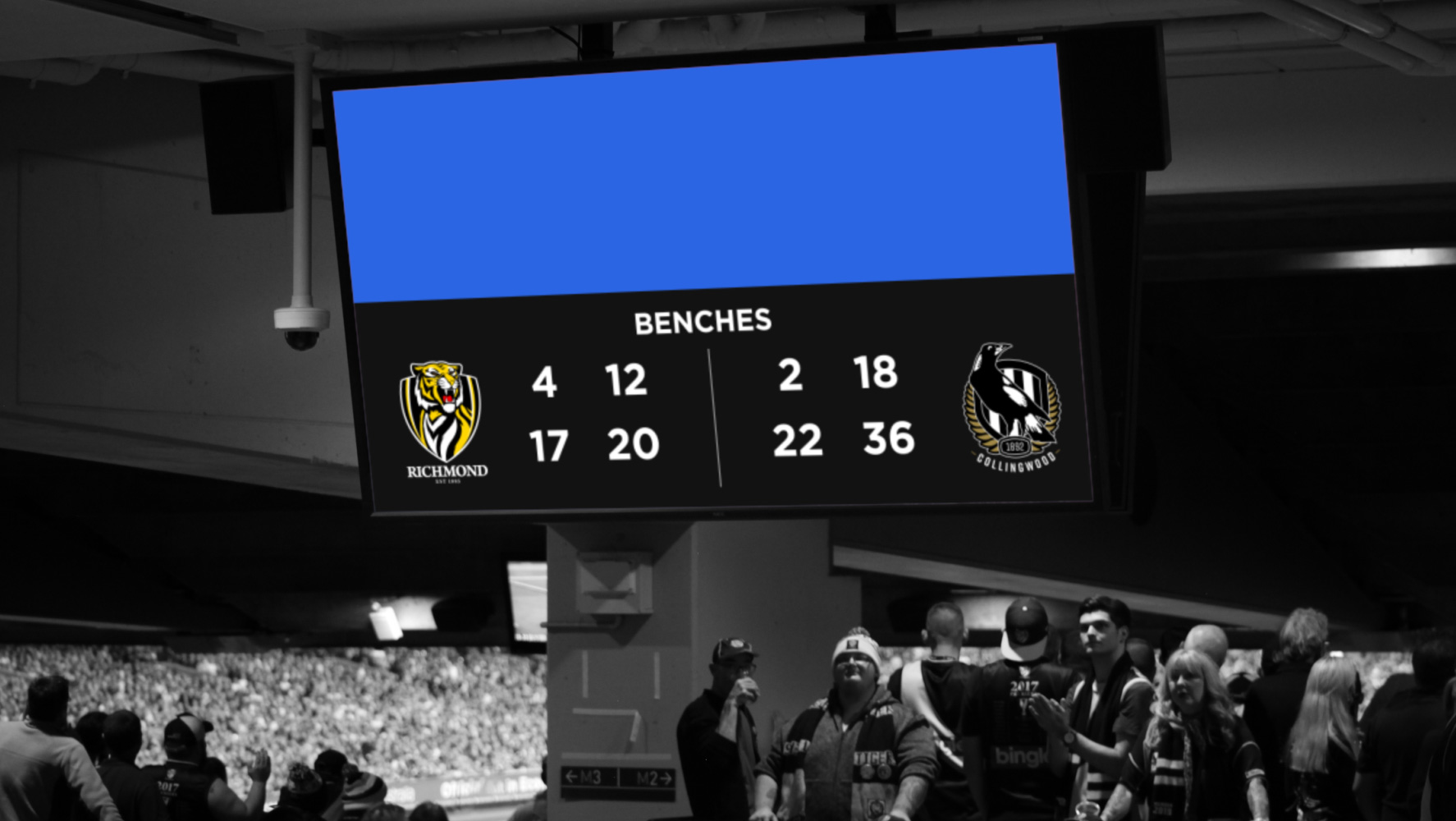

The data areas on the FULL, J-WRAP and L-WRAP graphics will be used to display live Interchange Bench data.

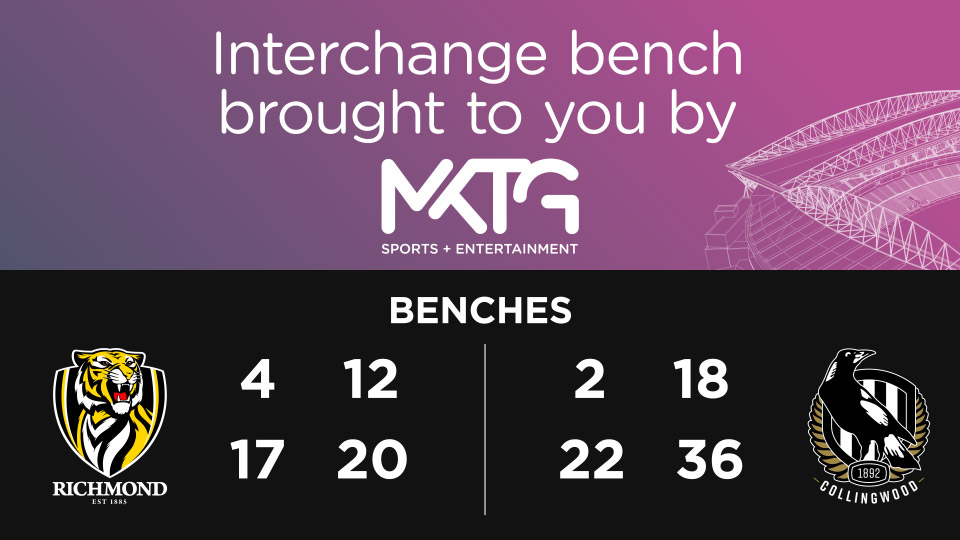

Leave the bottom half of the FULL graphic plain.

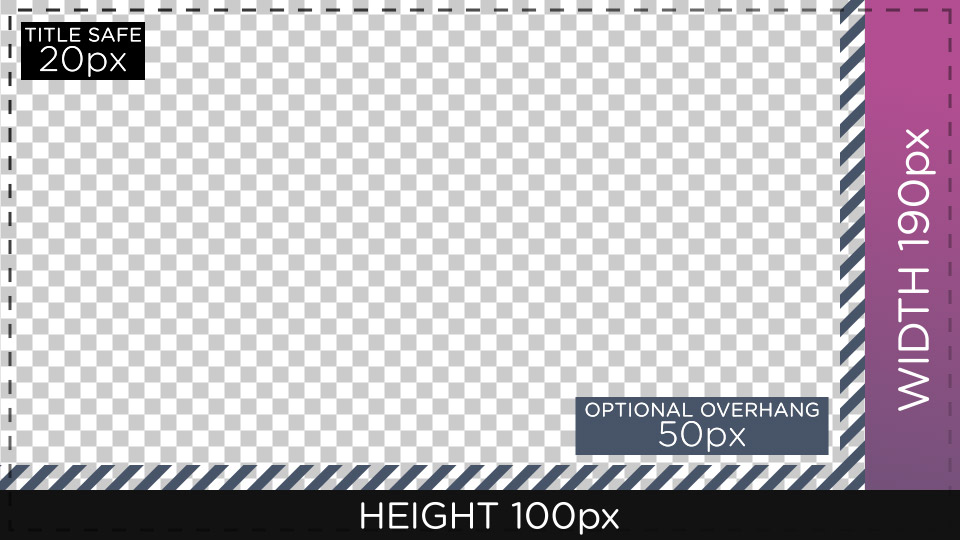

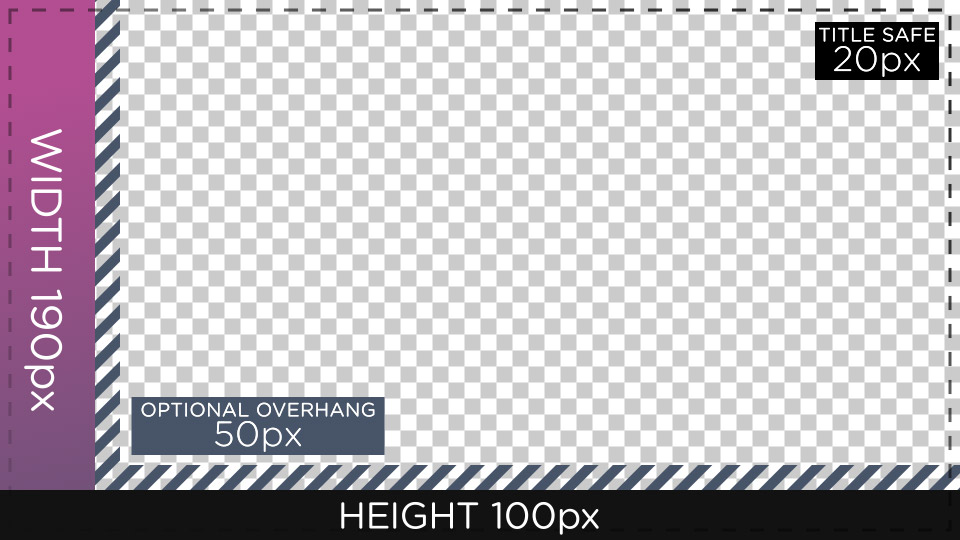

Leave the bottom 100 pixels of the J-WRAP and L-WRAP graphic plain.
We recommend using a solid, dark, non-black colour for these data areas.

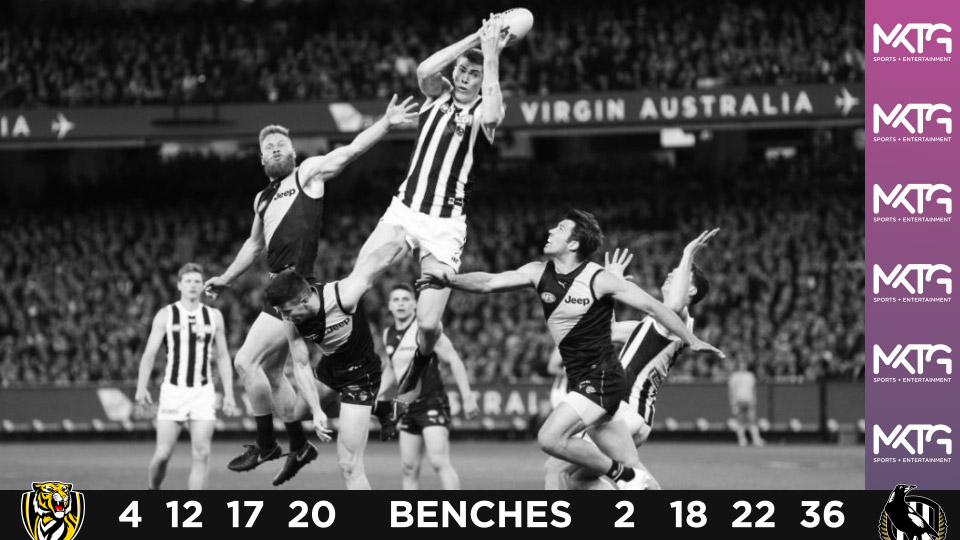

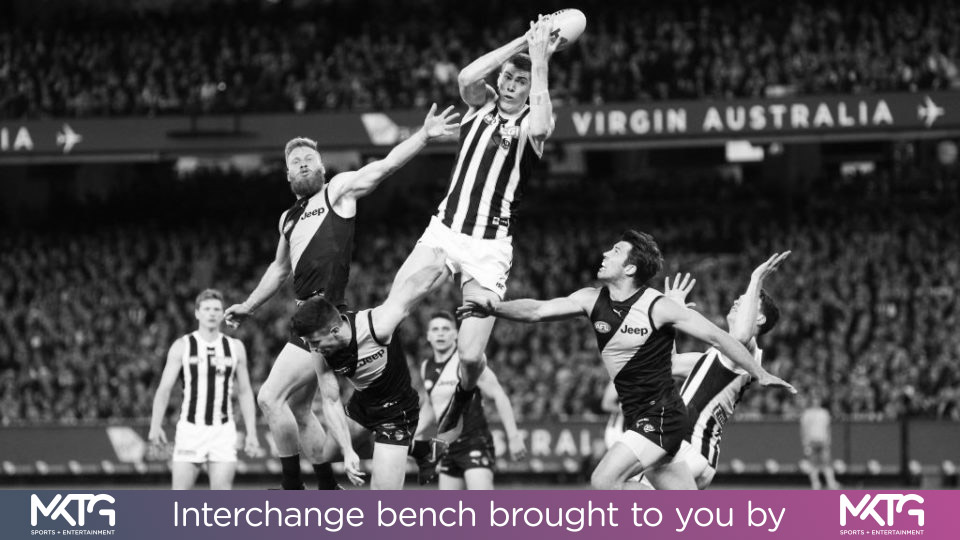

Examples
Alpha and Luma keying
In order for the match feed to appear under these graphics, they need to have alpha (if they are static images) or be luma key ready (if they are videos).
To luma key anything that is perfect black will be keyed out, and the screens’ regular content displayed in the blank spaces. This means you can not use perfect black in your video designs or must dilute any blacks so they do not key out.
An After Effects template for checking the Luma key available here.
Do not fade to black at the start or end of your animation.
Overhang

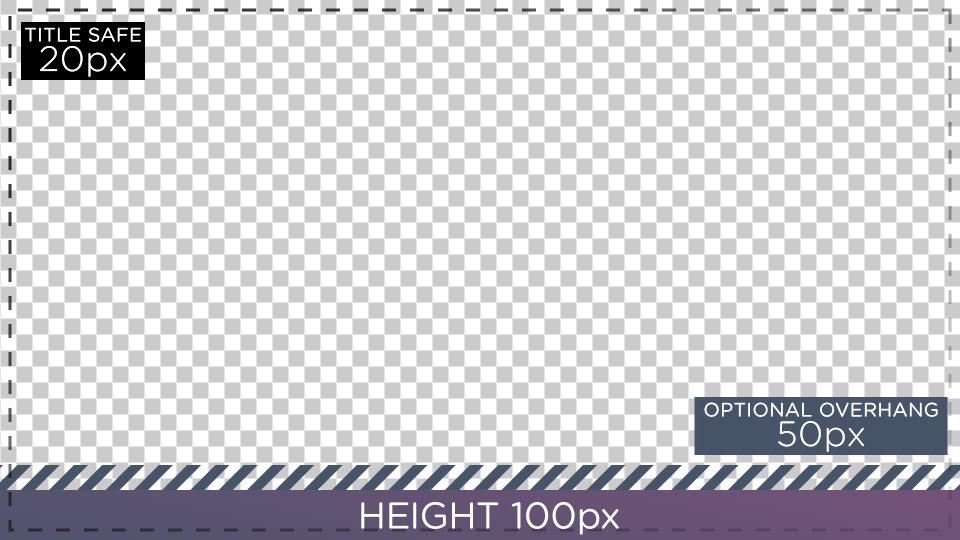

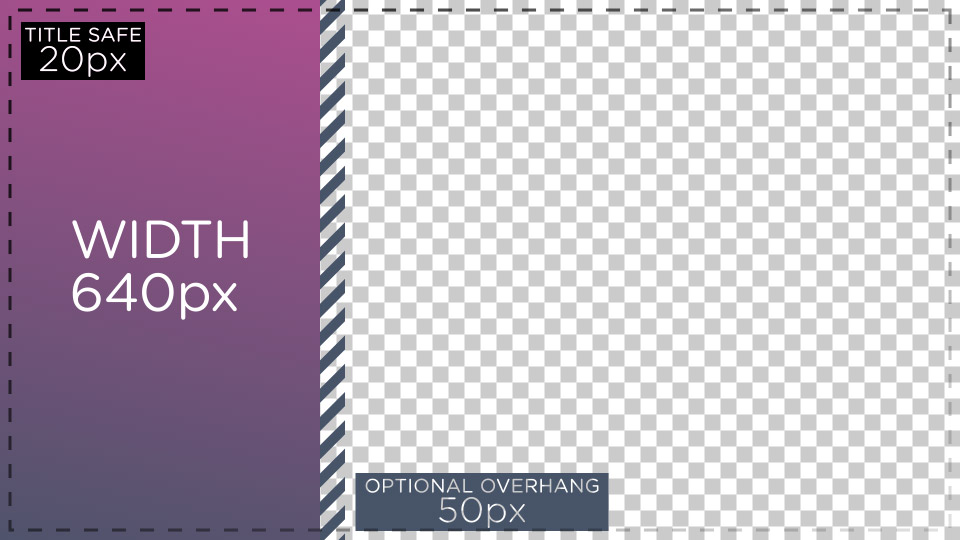

You may overhang a small amount of content up to 50 pixels from the content edge on the J-Wrap, L-Wrap, Side and Strap graphic.
Dimensions
| Asset | Venue | Dimensions | Title safe |
|---|---|---|---|
|
Full layout L-Wrap layout Side layout Strap layout |
MCG Marvel Stadium |
1920x1080 |
20 pixels |
File format
| Content | FPS | File type | Codec | Duration |
|---|---|---|---|---|
|
Video |
25 |
.mp4 |
H.264 |
15 seconds |
|
Static |
- |
.png |
RGB with alpha |
- |
MKTG Drop asset
| Content | MKTG Drop Asset |
|---|---|
|
Full layout L-Wrap layout Side layout Strap layout |
IPTV Interchange |
IPTV Gallery
